Multi-Lite Leanto Skylight

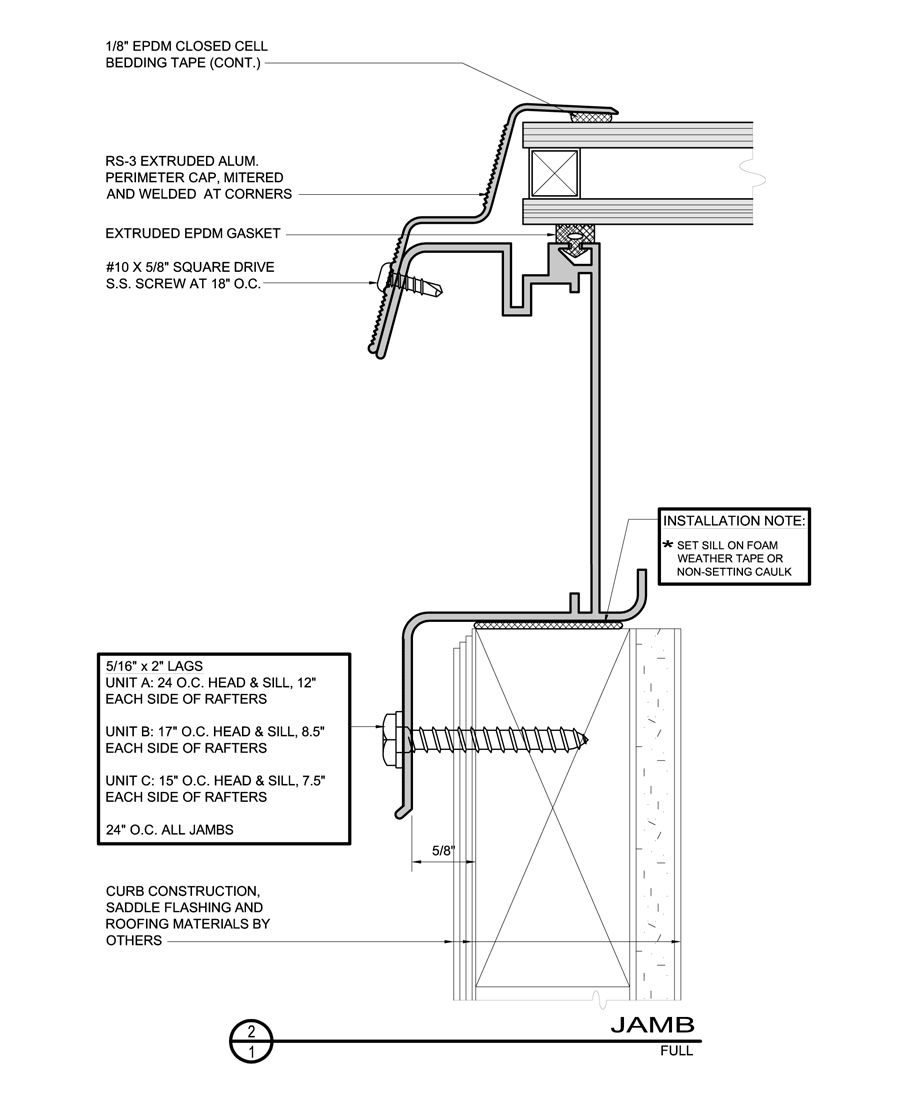

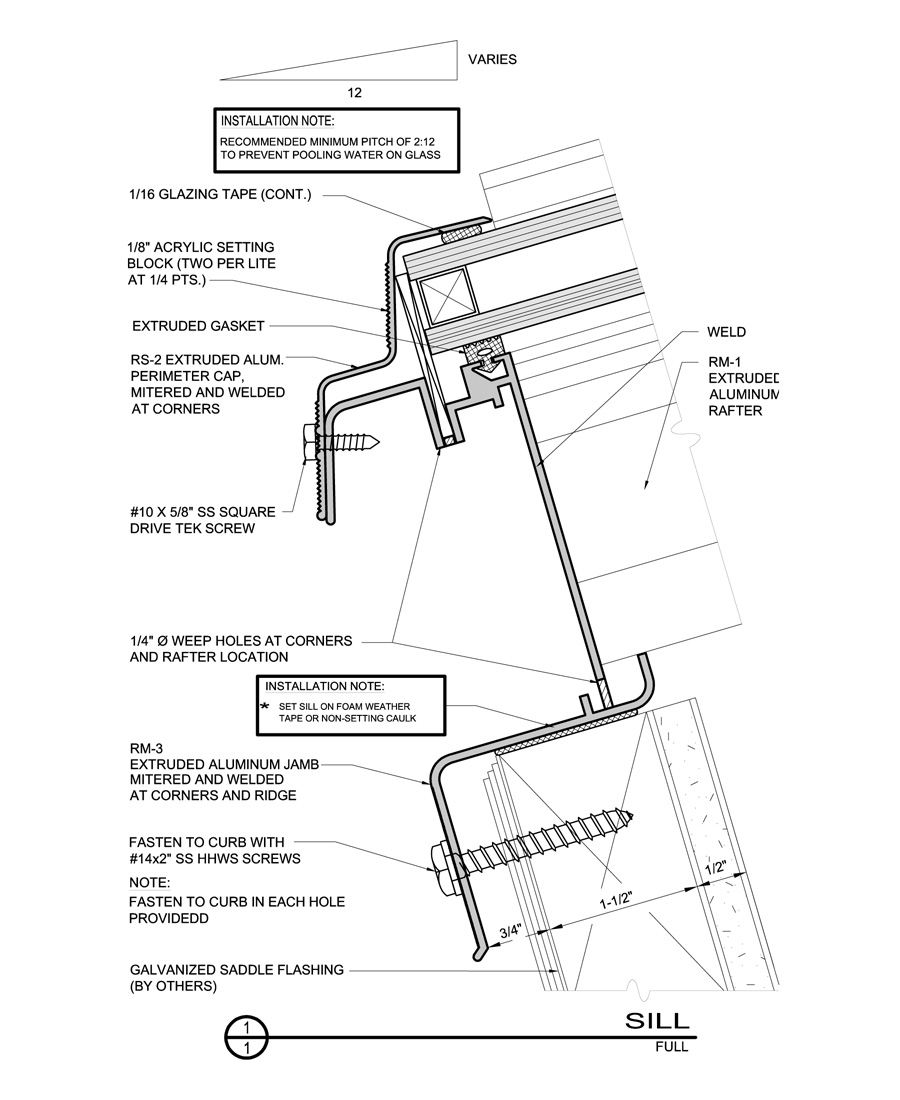

These skylights are attached and are flashed to a vertical wall at the head and may be curbed on two or three sides or may be jambed at an adjacent wall. The head typically fastens to or may sit on a ledger and counter flashing is provided by the contractor. Structural supports are required around the perimeter regardless of the attachment conditions.
Leanto-type skylights lend themselves to a variety of specialty applications and may accommodate unusual roof design and framing conditions. Skylight slope options vary from the minimum required to drain to slopes exceeding 12″ in 12″. Architectural Skylight Specifications
Single Pitch
Glass / Glazing Options
Glazing can be clear or with tints for an additional cost. The most common tints are white, gray and bronze. Custom tints are available such as blue, green and a variety of other colors. Please note this visual picture in not exactly what you will get on your skylight because everyone computer has different pixel preferences.
Translucent or pattern glass is available if more diffused lighting is desired. All glass units are provided with code compliant exterior panels of tempered safety glass and interior panes of laminated safety glass. This combination also provides the maximum protection from ultraviolet light.
Clear Laminated
White Laminated
Bronze Laminated
Gray Laminated
Clear Laminated
White Laminated
Bronze Laminated
Gray Laminated
Frame finishes
2.8 Pro-Polyurethane is a highly versatile and durable coating suitable for use in a wide variety of metal finishing applications. Please note this visual picture may not replicate the exact paint finish because each computer device has different pixel preferences.
Bronze
V-Gray
Black
Silver
